Plant 3D Advanced Course

Discover the Plant 3D Toolset

With the Plant 3D toolset, you can easily create and edit P&ID diagrams and generate lists. Create orthographic and isometric drawings of your piping plans.

Quickly and easily create steel structures, place equipment directly, link pipelines, and generate bills of materials.

Course Content

Training Content

Catalogs and Pipe Classes

Explanation of the Data Structure in the Content Folder for Plant 3D
Understanding and Using Catalogs
Building a Pipe Class in Plant 3D

Project Configuration for Admins

Creating Project and Drawing Properties
File Naming Formats
Connection Settings
P&ID Object Assignment
Understanding Classes
- Creating Properties
- Adding Labels
Acquisition Rules in Plant 3D

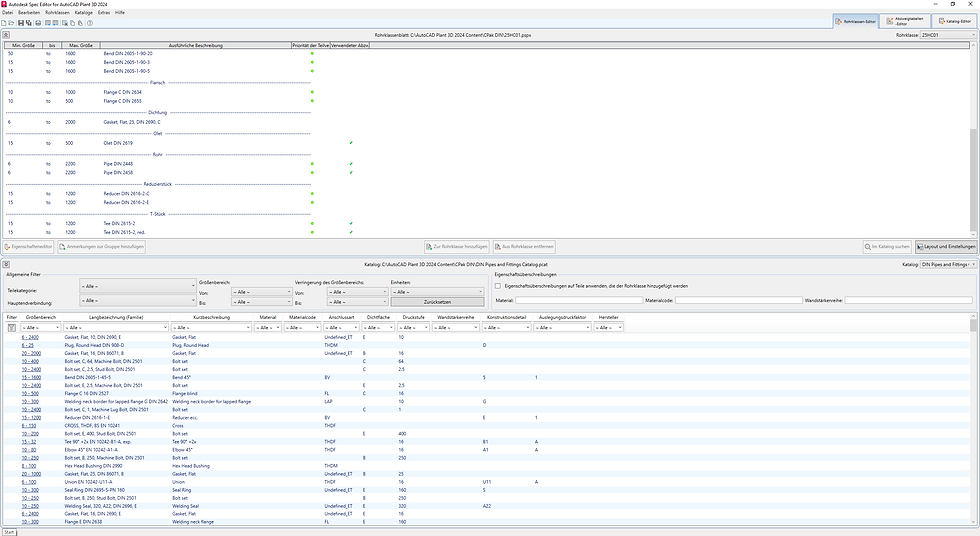

Spec Editor

Overview of the Interface
Loading and Configuring Catalogs
Creating Custom Components
- Parametric
- Block-Based
Creating Custom Catalog Properties (e.g., Article Numbers)
Understanding and Adjusting Bolt Length Calculations
Assigning Drives to Valves Separately

Orthographic Templates

Inserting or Creating a Title Block
Linking Properties from the Project Database
Configuring and Placing Bills of Materials
Layer Management
Label Styles

Creating a Custom ISO Style

Setting Symbols and References
Understanding and Defining Themes
Labeling and Dimensioning
Setting Up Title Blocks
- Layout and Logos
- Adjusting Tables and Placing Bills of Materials
- Incorporating Database Attributes for Custom Property Output
Testing the ISO Style

Online Training with MS Teams
Course Duration: 2 day, offered as a block course or weekly sessions of 6 hours each.
1 hour of free support included.

Pipe Class Creation

Creating a Test Environment
The Pipe Class
- Naming Conventions
- Structuring for Future Projects
- Prioritizing Components
Spec Editor
- Program Interface
- Adding Catalogs
- Adding Components
- Utilizing Filtering and Property Overrides
Branch Table Editor
- Creating a Legend
- Configuring Branching Options
- Filling the Branch Diagram
